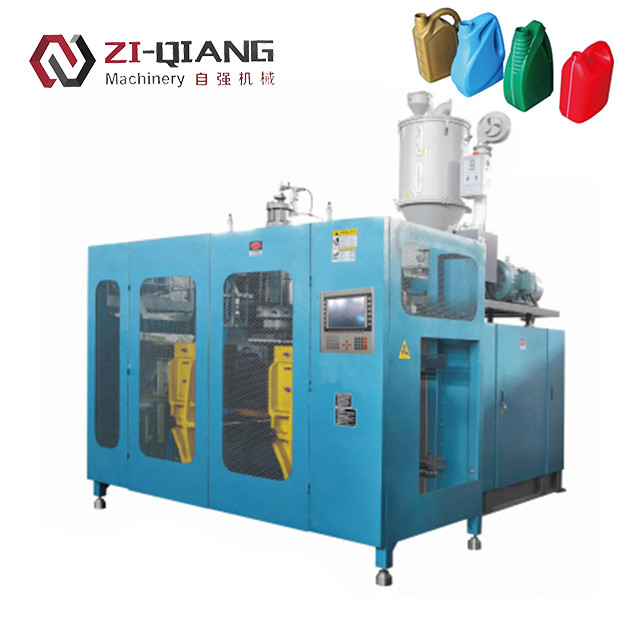

TCG Fully Automatic EBM-Continous Extrusion Blow Molding Machine 90D for Industrial Packaging
EBM (Extrusion Blow Molding) machines Description
Fully automatic EBM (Extrusion Blow Molding) machines are advanced manufacturing tools used in various industries for the efficient production of hollow plastic products.
A fully automatic EBM machine offers a range of benefits, including increased production efficiency, consistent product quality, cost savings, and enhanced safety measures. By automating key processes in extrusion blow molding, these machines improve overall productivity and competitiveness in the manufacturing industry.
| Main Technical Parameter |
| Max. Product Volume | (L) | 12 |
| Theoretical Output | (PC/h) | 550x2 |
| Screw Diameter | (mm) | 90 |
| Screw L/D ratio | (L/D) | 22-30 |
| Screw drive power | (KW) | 45-75 |
| Screw heating capacity | (KW) | 20-30 |
| Output of HDPE | (kg/h) | 120-200 |
| Oil pump drive power(with servo) | (KW) | 18.5 |
| Clamping force | (KN) | 150 |
| Platen size | (WxH) mm | 550x550 |
| Platen Moving Stroke | (mm) | 660 |
| Platen Opening Stroke | (mm) | 220-660 |
| Max. Die diameter | (mm) | 220 |
| Central distance of bi-die | (mm) | 240-280 |
| Central distance of three-die | (mm) | 90-160 |
| Central distance of four-die | (mm) | 90-120 |
| Central distance of six-die | (mm) | 80 |
| Blowing pressure | (Mpa) | 0.6-0.8 |
| Air Consumption | (M²/H) | 12 |
| Cooling water pressure | (Mpa) | 0.3 |
| Water consumption | (L/MIN) | 100 |
| Size of machine | (LxWxH)/m | 4.5x3.0x2.7 |
| Weight of machine | (TON) | 16.5 |
Application of Fully Automatic EBM Machine
Industrial Packaging
Industries rely on fully automatic EBM machines to create industrial packaging solutions like drums, canisters, and other specialized containers.
Medical Device Packaging
The precision and efficiency of fully automatic EBM machines make them suitable for manufacturing medical device packaging such as vials, containers, and parts.
Household Products
Products like detergent bottles, cleaning solution containers, and storage containers are efficiently produced using fully automatic EBM machines.
Automatic EBM Machine
Why choose us?
1. Provide comprehensive training for customers.
2. Ensure 100% operational stability of products before delivery.
3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.
4. Customized design to meet various needs of different customers.
5. 24 hours debugging, with after-sales personnel ready at all times.
6. Provide a complete set of production lines.
7. Offer online product testing equipment, image inspection, and reliable quality control.
8. Our company provides a one-year warranty for equipment molds and lifetime maintenance.
